Founded in 1909 as Japan's first tire manufacturer, for over 110 years Sumitomo Rubber Industries has been setting the pace in tire development attuned to the evolving needs of the changing era.

A road in midwinter is simulated! A road in midwinter is simulated!

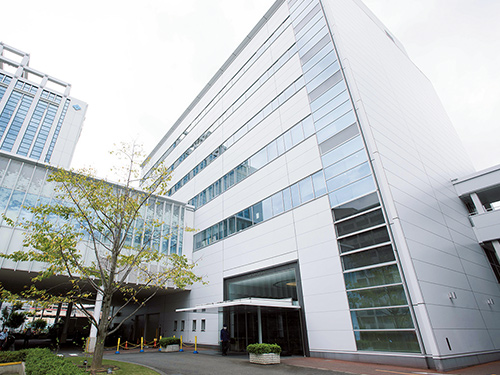

Located adjacent to the head office, the Tyre Technical Center, a six-story building with a basement, has a total floor area of 10,520m2. As globalization of the company's development structure progresses, the Center is spearheading advanced tire development.

Round, black auto tires are so familiar one scarcely pays them any attention. But these unsung heroes of everyday life are in fact engineered to fine tolerances and must satisfy stringent performance criteria. So painstaking evaluation plays a crucially important role. Keen to know more about ever evolving tire technology, I jumped at the chance to visit Sumitomo Rubber Industries Tyre Technical Center in the port city of Kobe.

The Tyre Technical Center was established in September 2009 to commemorate the centenary of Sumitomo Rubber Industries. Test facilities previously dispersed among several factories were concentrated here. I was surprised to learn that the Center has some 200 test facilities, ranging from big equipment to small setups. Tire materials, the tires themselves, and their performance when mounted on cars are rigorously tested and exhaustively analyzed. For this visit, we focused on tire performance evaluation (although other fascinating topics clamoring for attention included the world’s first 100% fossil resource-free tire and novel raw materials).

Roughly speaking, tire performance can be broken down into four elements: driving stability, comfort, wear resistance for long life, and fuel efficiency. The Center conducts all sorts of experiments, evaluations, and analyses to enhance these attributes. Consider, for example, the studless tires that are indispensable for getting around in freezing wintry conditions. You want your tires to have a good grip on icy or snowbound roads but don’t want them to wear out quickly. This year Sumitomo Rubber Industries launched a breakthrough product that achieves both a firm grip on icy surfaces and superior abrasion resistance. This tire is a crystallization of the company's expertise.

Evolution of tires is endless! Keep responding to expectations of drivers  and automakers. Evolution of tires is endless! Keep responding to expectations of drivers  and automakers.

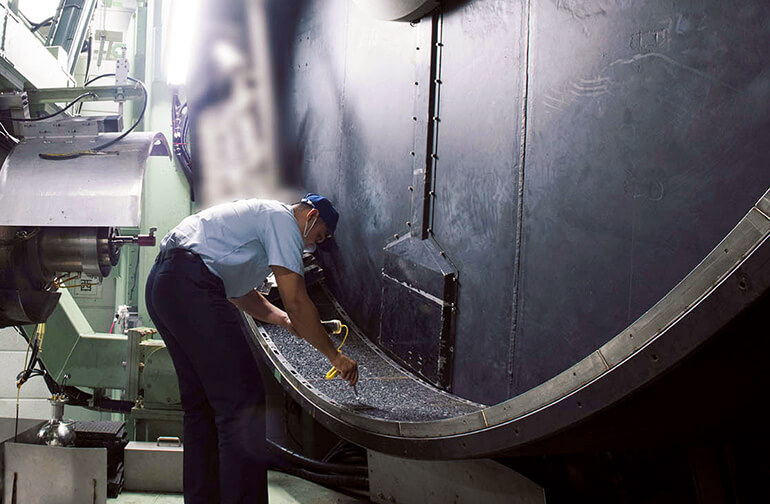

My guide, Mr. Akira Kamigoro of the Tyre Technical HQ, Test Dept. II, first showed me a friction tester equipped with a drum emulating low-μ conditions. The Greek letter μ represents the coefficient of friction. Low-μ indicates that surfaces are slippery because of precipitation. This friction tester also incorporates a snow gun. Within the 3-meter-diameter drum, road surfaces similar to those in the great outdoors are reproduced, such as in rainy, icy, or snowy weather, and tire performance when stopping, running, turning, and so forth is tested and analyzed. Inside the tester it's a chilly minus 2℃.

Next was a friction tester equipped with a drum emulating high-μ conditions. With its 5-meter-diameter drum, this is the big brother of the one I just saw. Mr. Kamigoro took great pride in showing me this outsize tester, which is one of the few of its kind in the world. The diameter is big so as to make the contact surface as flat as possible. The 36 plates inside the drum, each weighing 38kg, can be configured to simulate everything from the surface of an ordinary asphalt road to that of a racing circuit. The drum rotates super fast to reproduce speeds of up to 250 kph. I was shown a video depicting the dynamic performance of this testing equipment, which is primarily used to evaluate the grip of sport tires.

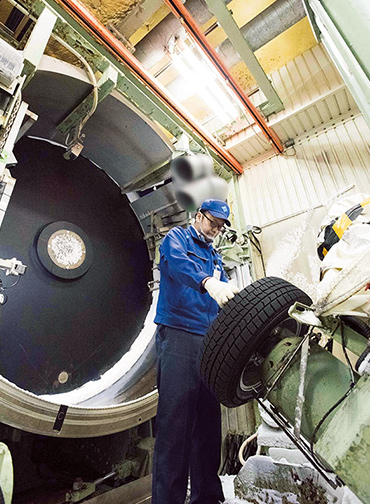

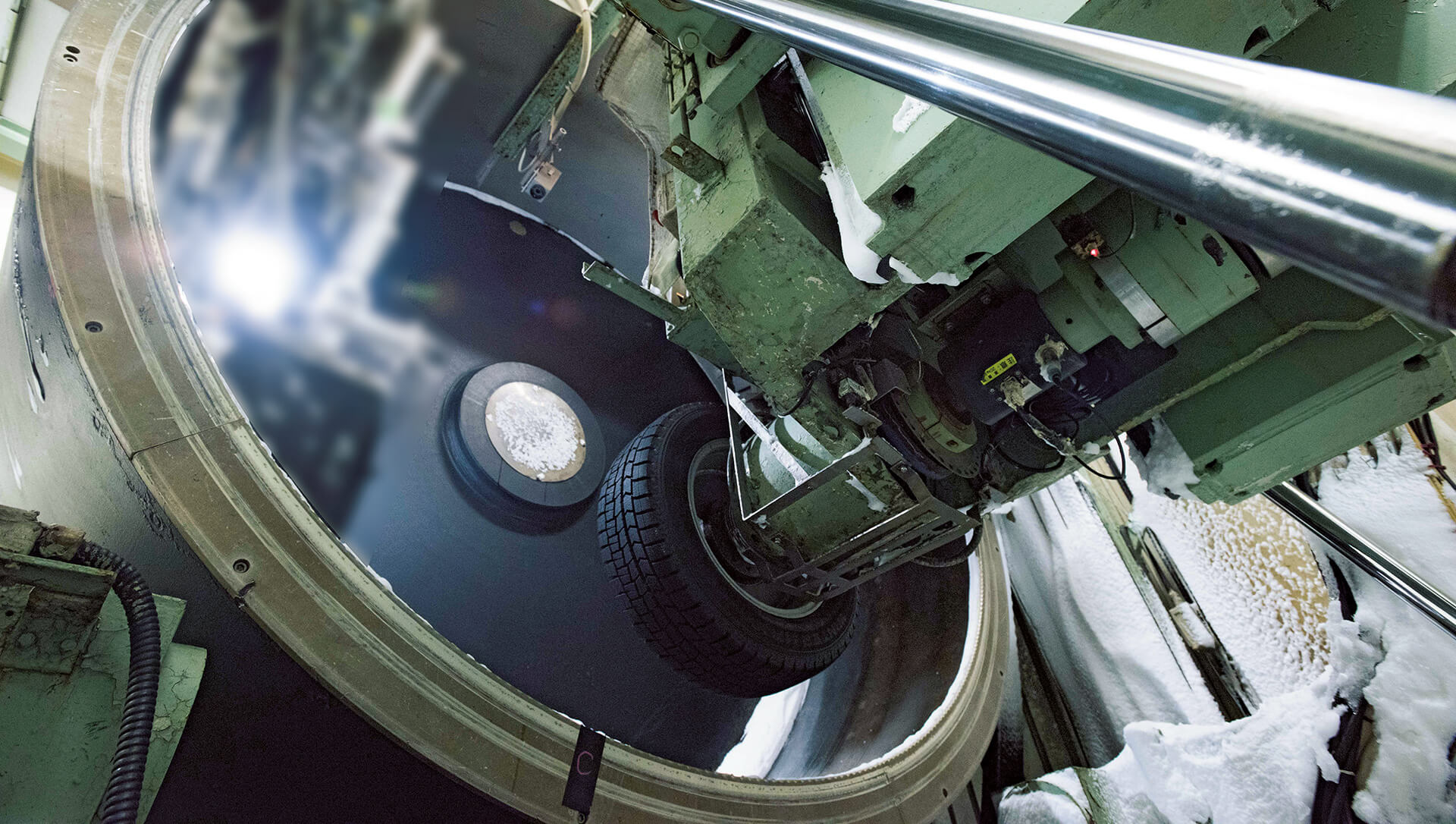

The friction tester with a drum simulating low-μ conditions reproduces a snowbound or icy road surface. Testing under such conditions spurred development of studless tires.
The friction tester with a drum for high-μ conditions measures cornering performance of sport tires at ultrahigh speed, such as for racing cars, on simulated road surfaces.

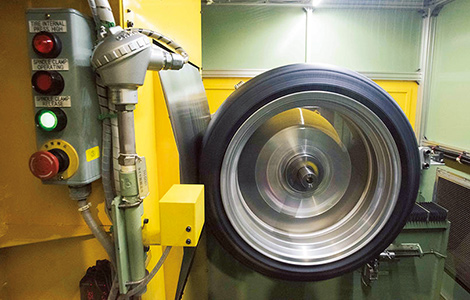

On the way to the next facility, I caught a glimpse of the tire rolling resistance tester. Rolling resistance, the force opposite to the direction of motion, has a great bearing on fuel efficiency. Replacing regular tires (B grade in rolling resistance coefficient) with AA-grade tires boosts a car's fuel ficiency by about 3% while reducing rolling resistance by 30%.The improved fuel economy works out at about 4 yen per liter, assuming a gasoline price of 130 yen per liter.

My final destination was a large anechoic testing chamber. The walls and ceiling have special contoured texture with indentations and protuberances designed to absorb sound without reflection. In this testing chamber, a tire runs on a simulated road surface and noises, such as the noise made by a tire when it rolls into and out of contact with the road and the tire cavity resonance noise made by tread grooves, are measured and analyzed. By clarifying the relations between tread pattern and noise, engineers are able to develop noise-reducing tires. Take a close look at a tire and you will see that its pitch varies slightly in size and shape. I was surprised by just how detailed tire design is. Although one can only see a little bit of the simulated road surface, beneath the floor is a 3-meter-diameter drum. That gives you an idea of the scale of this testing chamber.

The test facility for rolling resistance measures fuel efficiency under room-temperature conditions of 25±2℃, which is severer than the statutory requirement.

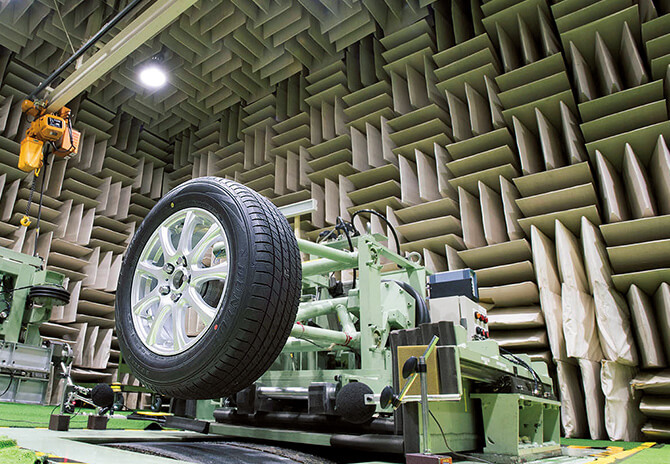

The large anechoic testing chamber whose walls and ceiling are covered with indentations and protuberances designed to absorb sound without reflection measures tire noise with the aim of reducing it. Tests using actual cars can be performed here.

In this chamber, I was shown SILENT CORE (specialized noise-absorbing sponge), a world's first technology developed by Sumitomo Rubber Industries. Resonance within a tire equipped with SILENT CORE is totally different from that in a tire that doesn't use this technology. Now that electrification is cutting car engine noise, engineers are increasingly focusing on reducing tire noise. "Improvements of the order of 10 to 20% are needed for car users to realize the difference between their new tires and their previous ones. It’s a big challenge. We are testing, analyzing, and developing in pursuit of such substantial performance gains," says Mr. Kamigoro. From now on I will look at car tires in a new light!

Squaring the circle: Achieving contradictory performance attributes!

The big challenge in tire development is to achieve improvements in various seemingly contradictory performance elements: driving stability, comfort, wear resistance, and fuel efficiency. Low rolling resistance is great for comfortable driving but a firm grip is a must for effective braking. On the other hand, the use of soft rubber to enhance grip means your tires will wear out fast. And the downside of lighter tires to enhance fuel efficiency is less comfort and more noise. Testing and analysis conducted by engineers at the Tyre Technical Center are at the heart of efforts to strike a balance among all these factors so as to achieve the best possible overall tire performance.

Can we do everything? Can we do everything?

One challenge after another

You will get attached to the tires as they overcome numerous challenges.  But this is  not the end.
Next, a specialist subjects the tires to simulated extreme driving conditions.  How will the new one perform?
Sometimes, the test run ends  after a few  meters.  No good! Make a new one!
Poor tires! Why not come home with me instead of enduring relentless testing?  You are too attached to  them!

Editor’s note

Just a 10-minute drive from JR Shin-Kobe Station is the Tyre Technical Center, sharing the same site as Sumitomo Rubber Industries head office building. Kobe Factory, heavily damaged by a major earthquake that struck the region in 1995, once stood here. The Center was inaugurated in 2009, the company’s centenary. Tires were in fact manufactured here in Kobe for about 100 years, long before anyone had ever given a thought to equipping them with noise-absorbing sponge or other high-tech innovations. As the electrification of cars progresses, tires are taking on new roles, becoming ever more sophisticated and versatile. Always relishing a challenge, the Center is eagerly responding to these increasingly complex needs while doing its utmost to enhance productivity.

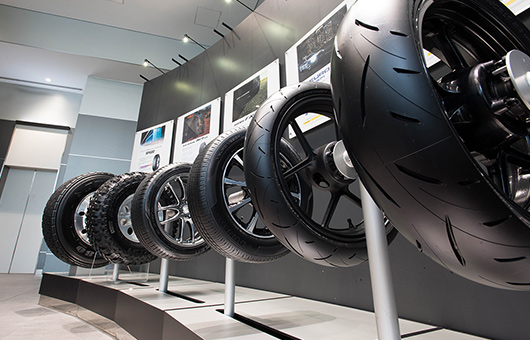

Displayed in the lobby are various types of tires, ranging from familiar ones for cars to their bigger brothers designed for trucks and buses.
The plaque on this monument, which was erected in 1989 to mark the company’s 80th anniversary, bears the words, “Birthplace of the modern rubber industry.” The red bricks of the monument are from the tire factory that once stood here.
